Product drawings
Drawing dated January 2025
Associated models are listed below. Confirm the intended model, drawing notes and current applicability before specifying.
Source discrepancy: The catalogue and assembly drawing give different component dimensions and weights, and the building-height annotations also differ. Confirm the approved component specifications with Anchor Concrete before ordering.

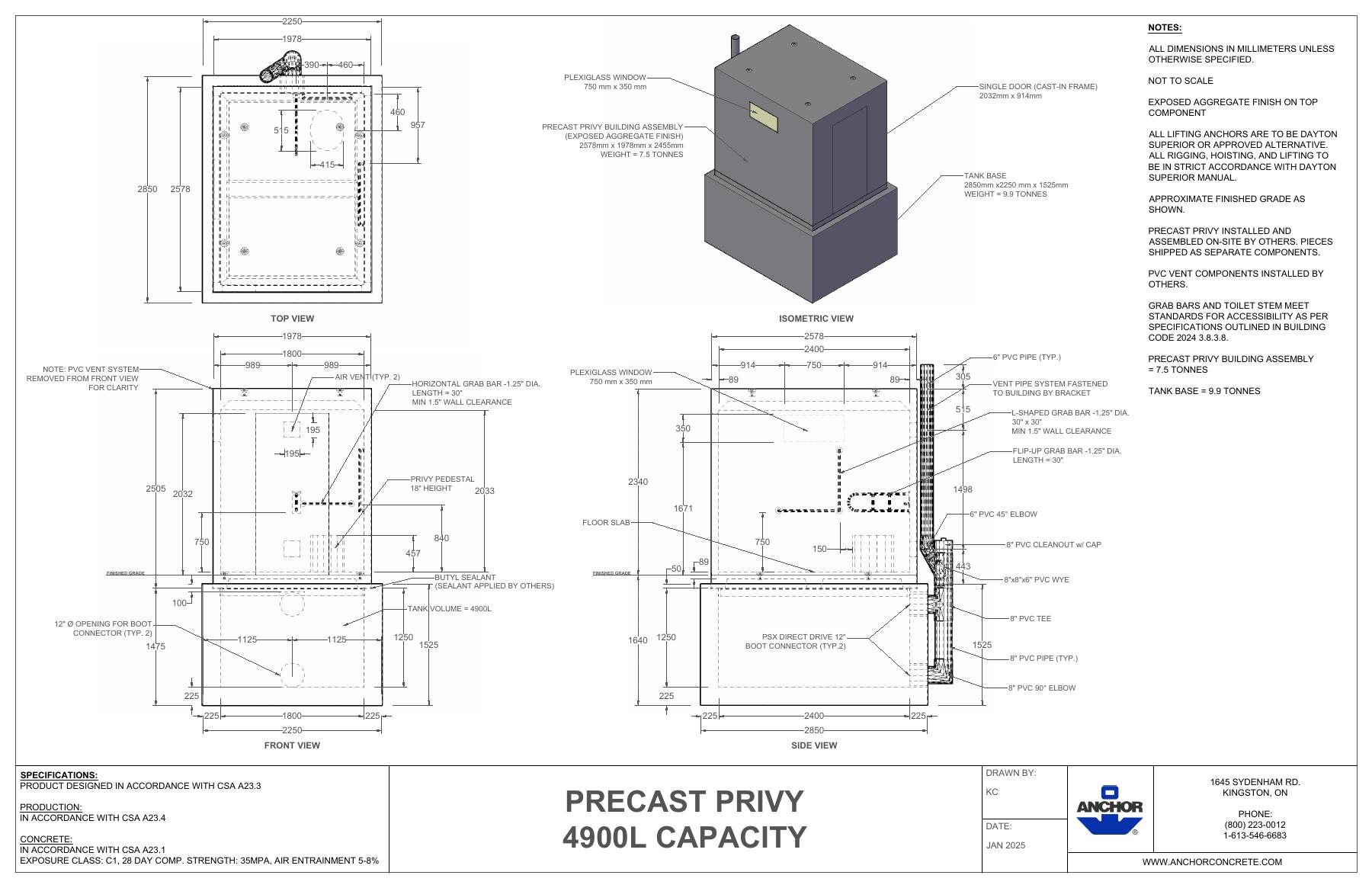

Complete first-page preview of the original document. Open the original file to read all details at full resolution.
